Process Planning Module

Gear/Spline process planning in green(soft) stage

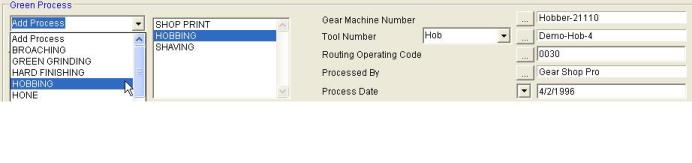

      Process the gear/spline by assigning cutting machine, cutter, operation etc.

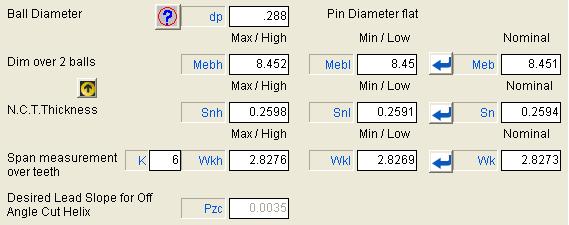

       Tooth size development for pre-finishing and finishing, plus compensation for distortion due to heat treatment.

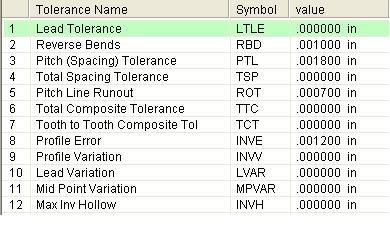

       Assign tolerances to each process. Overwrite standard tolerance if needed.

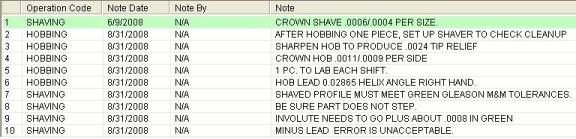

       Process development notes and editing

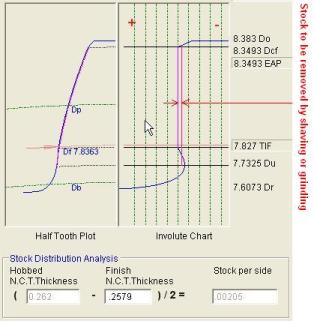

       Size-change history to optimize stock for finishing process

        Create Machining summary for cutting machine setup, Hobbing, Shaping, Shaving or Honing

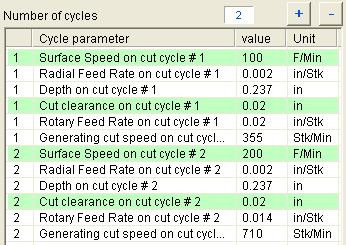

    Machining Symmary examples

       Estimate cycle time for hobbing, shaping and shaving for quick job quotations

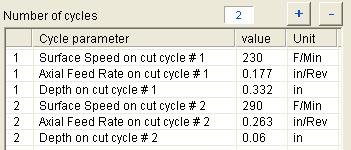

    Cutting Cycle Time examples
